Fully streamlined appearance, integrating contemporary industrial design trends, the perfect combination of aluminum titanium alloy and alloy steel.

Aluminum titanium alloy oil cylinder, high strength and toughness.

The maximum working pressure is 70MPa.

Precision small ratchet design, no check structure, will not get stuck due to bolt torsion.

Oil pipe rotary joint 360 ° X180 °, no space limitation, free operation.

The transmission components are few, the mechanism is simple, easy to maintain, and the maintenance cost is low.

Compact integrated reaction arm design, with less wrench bias and greater durability.

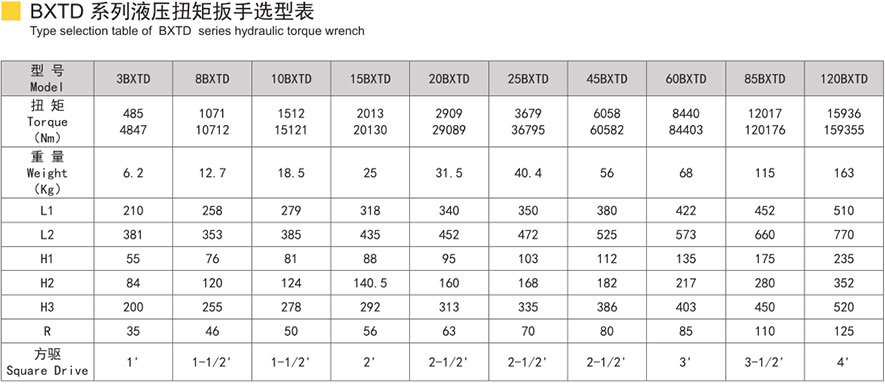

There are a total of 13 models ranging from 485-280000 Nm, which is the highest among similar products on the market,

Products with wide bolt coverage.

Especially the appropriate selection of high torque pre tightening bolts for water turbine rotors.

Constant torque output, with a repeatability accuracy of ± 3%.

Multiple drive shafts can be replaced, and the reaction force arm can be customized and extended according to the on-site space.
